AOSIF 10KW 10kva 15kva 20 kva 25kva 30kva 40kva diesel generator prices

FOB Reference Price:Get Latest Price
$5,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 4 >4
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
AOSIF
Model Number:
DCEC 4B series
Rated Power:
24kw-80kw
Output Type:
AC Three Phase
Rated Voltage:
220v-480v
Rated Current:
depend
Speed:
1500-1800rpm
Frequency:
60 Hz
Engine:
with Cummins engine
Alternator:
Leroy somer,Stamford,Marathon,Engga
Quality control:
ISO9001,ISO14000,CE,SONCAP
Cooling method:
Water-cooled
Breaker:
MCCB,ACB
Excitation:
Brushless
Warranty:
1year or 1000 hours
Control panel:
Deepsea / ComAp / Harsen / Smartgen
Tel:
0086-592-2620130
SH:
85021100
Supply Ability
Supply Ability:
200 Set/Sets per Month 10kva generator
Packaging & Delivery
Packaging Details
Foam and PE film package, plywood package, plastic film package or by customer required.
Port
Xiamen,Fujian
Lead Time :
Quantity(Sets) 1 - 4 >4
Est. Time(days) 30 To be negotiated
Video Description

More Information ABOUT US Please Click Here


Product Description

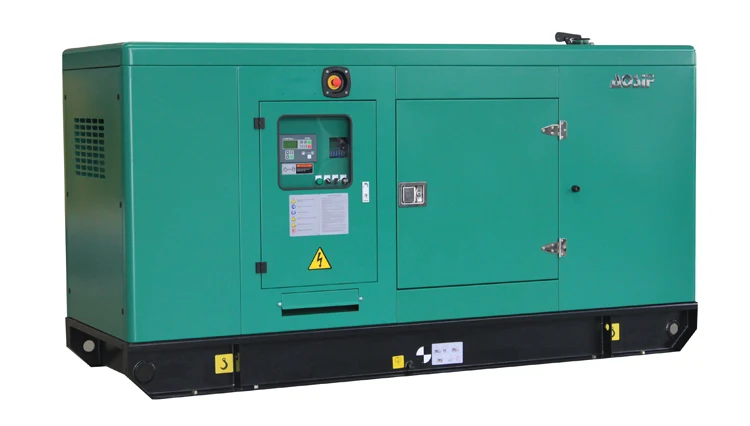

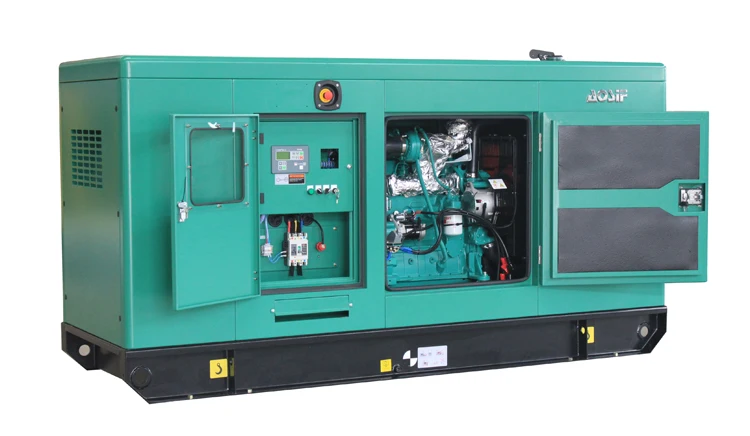

 with CUMMINS engine 4B/4BT/4BTA Series 60HZ/1800RPM

Genset
Model
Prime power/
Standby power
Engine modelFuel
consumption
CylinderDisplacement (L)Genset
 Dimension
(mm)
Weight (kg)
KVAKWL/h
AC3330/3324/264B3.9-G27.54L3.91610×730×1285650
AC5045/5036/404BT3.9-G29.34L3.91660×730×1285700
AC7265/7252/574BTA3.9-G217.44L3.91730×730×1285800
AC8375/8360/664BTA3.9-G217.44L3.91730×730×1285800
AC10090/10072/804BTA3.9-G1120.14L3.91780×730×1285850



AOSIF Generator Supply Scope

1. Engine:   Brand-new engine.
2. Alternator:  Brand new brushless alternator, single bearing, IP23, H insulation class.
3. Base Frame:Heavy duty steel channel base frame.
4. Radiator: With safety guard.
5. Vibration DamperVibration damper between Engine/Alternator and base frame
6. Breaker: 3-pole output manual circuit breaker as standard,  4 poles for option
7. Controller:    DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 for option.
8. Silencer:  Heavy duty industrial type silencer with flexible bellow,elbow.
9. Battery:    Varta Brand,high capacity sealed maintenance free battery c/w battery cables.
10. Fuel Tank: 8 hours base fuel tank
11. Tool Kits & Manuals:Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.
Optional Supporting Products
Moveable/Trailer Type Diesel Generator /Synchronization System
 Automatic Transfer Switch /Dummy Load  Day Tank
